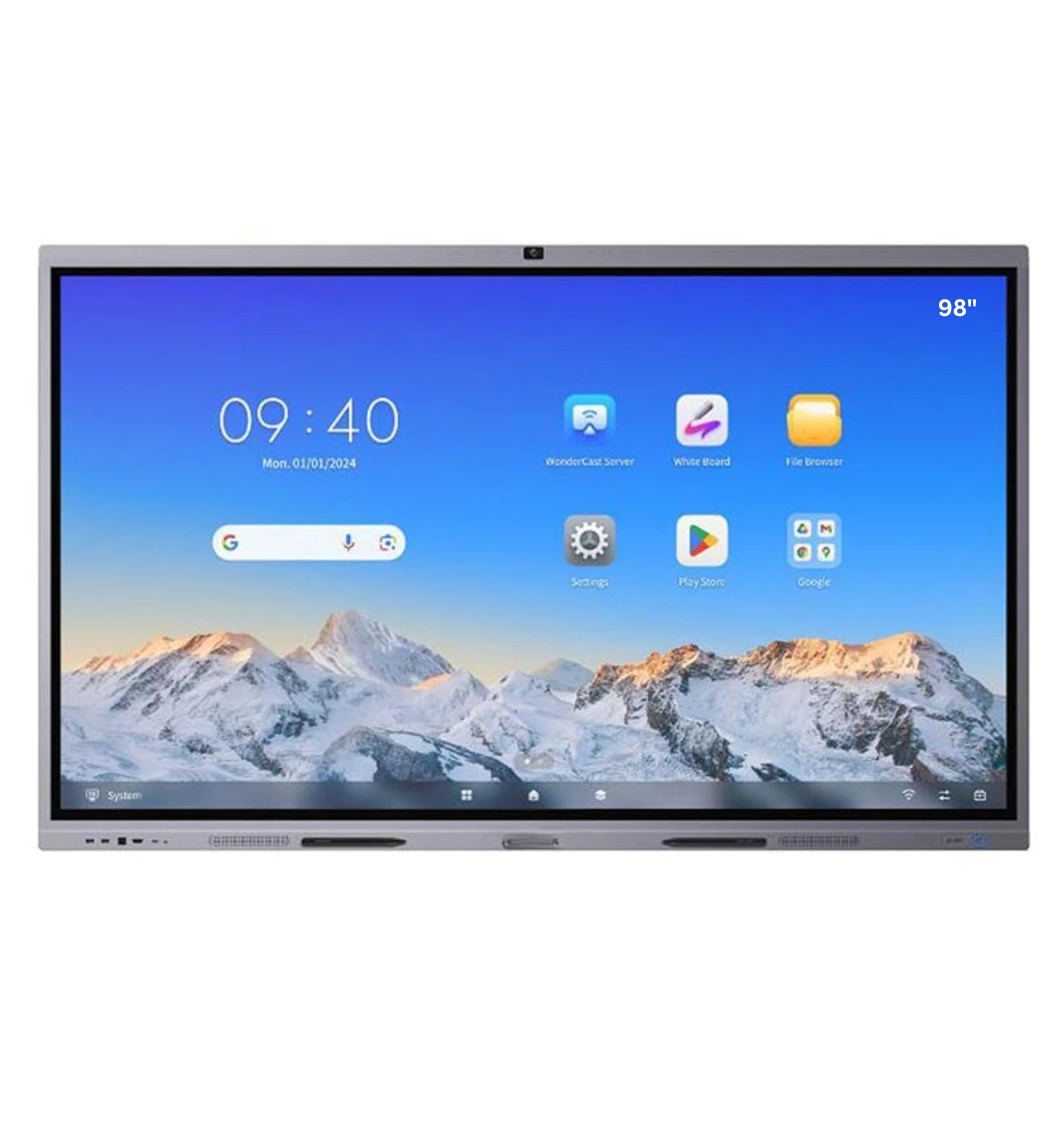

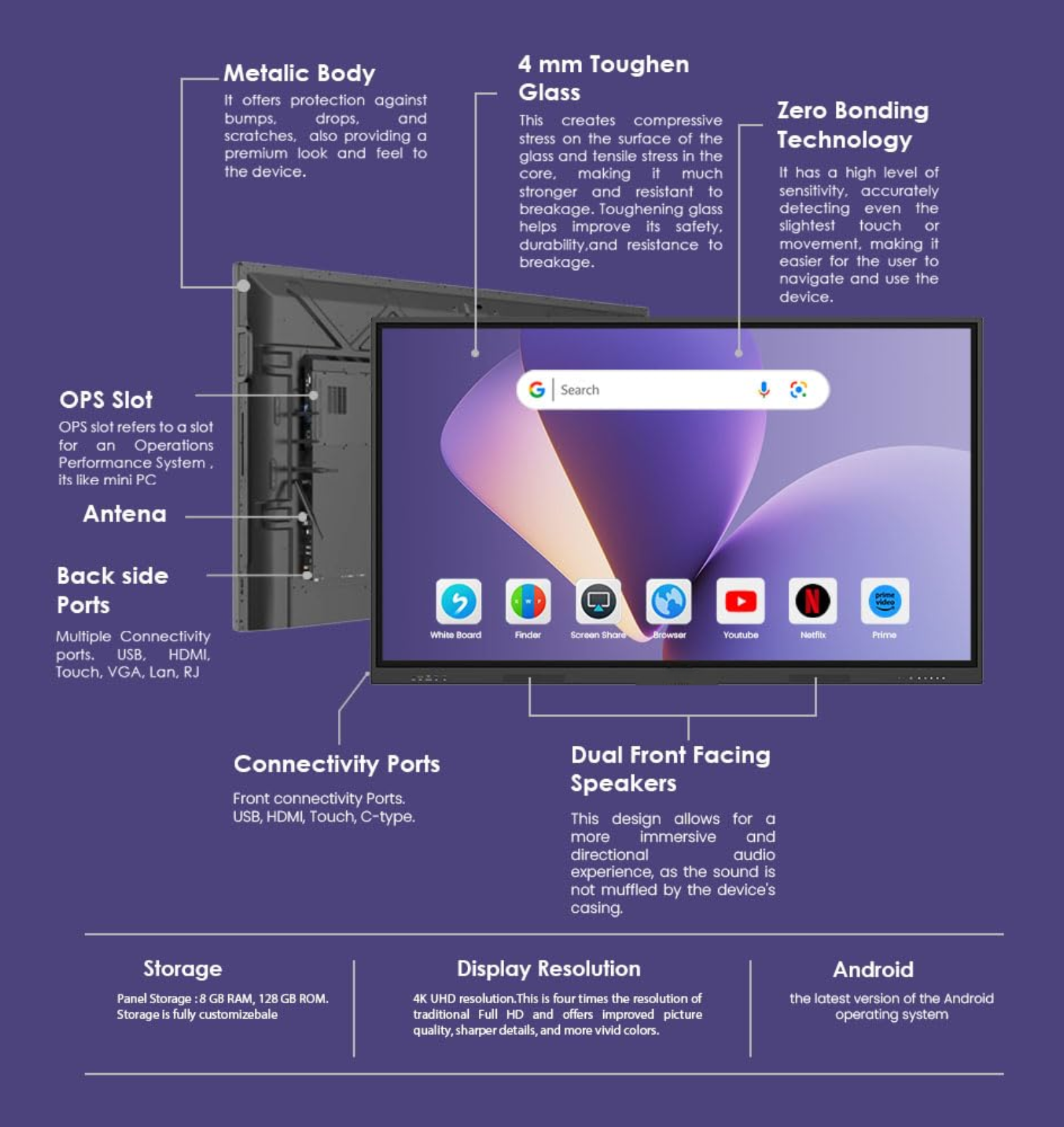

SAPIXCO INTERACTIVE FLAT PANEL Model: SAP-98C (With Camera & Microphone)

Display Specifications

Display Size
98 Inch

Display Type
DLED Backlight LCD

Resolution
4K Ultra HD (3840 × 2160)

Aspect Ratio
16:9

Brightness
450 cd/m²

Contrast Ratio
5000:1

Viewing Angle
178° (Horizontal / Vertical)

Color Depth
1.07 Billion Colors

Panel Life
50,000 Hours

Protection Glass
4 mm Toughened Anti-Glare Tempered Glass

Surface Hardness
Mohs Level 7

Touch System

Touch Technology
Infrared (IR) Multi-Touch Technology

Touch Points
40 Touch Points (Android)
20 Touch Points (Windows OPS)

Touch Accuracy
±1 mm

Response Time
≤5 ms

Minimum Touch Object
2 mm

Writing Method
Finger / Stylus / Any Opaque Object

Gesture Recognition
Supported (Zoom, Rotate, Swipe)

Built-in Camera System

Camera Type
AI Smart Conference Camera

Camera Resolution
48 Megapixel

Camera Configuration
Triple Camera System

Camera Setup
1 Panoramic Camera + 2 Zoom Cameras

Optical Zoom
2× Optical Zoom

Hybrid Zoom
5× Hybrid Zoom

Auto Framing
Supported

Speaker Tracking
Supported

Field of View
Ultra-Wide Angle Conference Coverage

Built-in Microphone System

Microphone Type
AI Array Microphone System

Pickup Range
Up to 8–10 meters

Noise Reduction
AI Noise Suppression

Echo Cancellation
Supported

Voice Tracking
Supported

Audio System

Speaker Type
Built-in Stereo Speakers

Speaker Output
20W × 2 High-Power Speakers

Sound Mode
Stereo Digital Audio

System Configuration

Operating System
Android 14

Processor
Octa-Core High Performance Processor

Graphics Processor
ARM Mali GPU

RAM
8 GB

Internal Storage
128 GB

OPS Compatibility
Intel OPS Standard Slot Supported

Connectivity & Ports

HDMI Input
3

HDMI Output
1

USB Ports
4 × USB 3.0

USB Type-C
1 (Video + Data + Touch + Charging)

VGA Input
1

LAN Port
1 × RJ45 Ethernet

Audio Output
1 × 3.5 mm Jack

Touch USB Port
1

OPS Slot
1 × Intel OPS Slot

Wi-Fi
Dual Band Wi-Fi Supported

Bluetooth
Supported

Smart Interactive Features

Interactive Whiteboard Software

Wireless Screen Sharing

Multi-Device Screen Casting

Annotation on Any Source

Multi-User Collaboration

Split Screen Mode

Gesture-Based Controls

Cloud Integration Support

Support for 5000+ AI Powered 3D Educational Models

Video Conferencing Compatibility
(Zoom / Microsoft Teams / Google Meet)

Power Specifications

Power Supply
AC 100–240V, 50/60 Hz

Maximum Power Consumption
≤500W

Standby Power Consumption
≤0.5W

Physical Specifications

Product Dimensions (W × H × D)
Approximately 2220 × 1320 × 100 mm

Package Dimensions
Approximately 2400 × 1500 × 300 mm

Net Weight
Approximately 95 kg

Gross Weight
Approximately 115 kg

Wall Mount Standard
VESA 1000 × 600 mm

Environmental Conditions

Operating Temperature
0°C to 40°C

Storage Temperature
-10°C to 60°C

Operating Humidity
10% – 90% RH (Non-Condensing)

Included Accessories

Smart Stylus Pen

Wall Mount Bracket

Remote Control

Power Cable

HDMI Cable

User Manual

Ideal Applications

Smart Classrooms

Auditoriums

Corporate Boardrooms

Command & Control Centers

Training Centers

Large Conference Rooms

Interactive Digital Presentations
