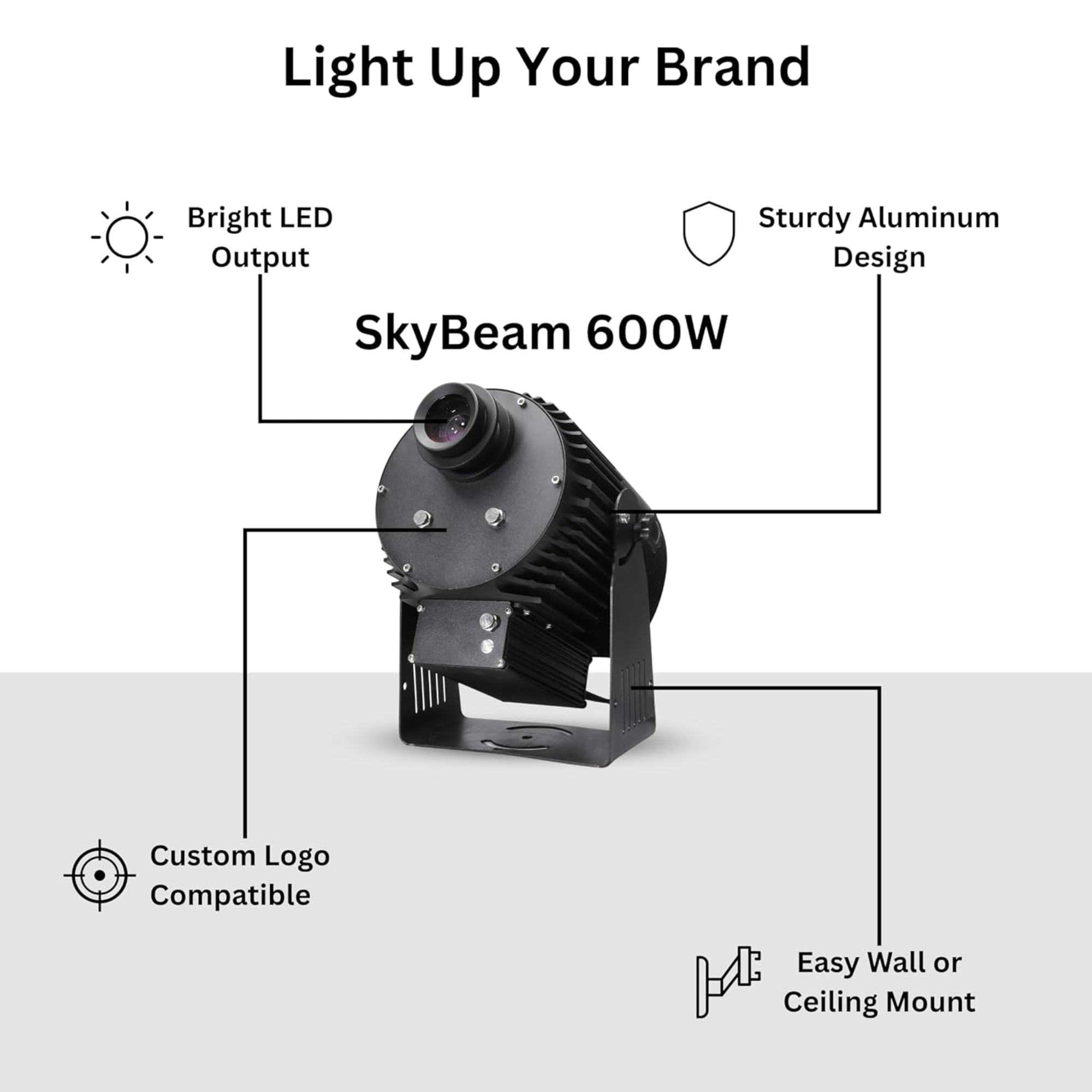

600W LED Logo Projector Ultra High-Power GOBO Advertising Projection System

Projection Specifications
Feature Specification
Product Type LED Logo Projector / GOBO Projector
LED Power 600 Watt High-Power LED
Brightness Approx. 50,000 – 60,000 Lumens
Projection Technology GOBO Optical Projection
Projection Distance 20 – 150 meters
Projection Ratio 1 : 0.33
Standard Lens 20° Projection Lens
Optional Lens 10° / 15° / 30° / 45°
Image Mode Static / Rotating Logo

The 600W high-intensity LED module enables very large projections across long distances, making it ideal for stadiums, skyscrapers, and city-scale branding installations.

Optical System
Feature Specification
Lens Type High Definition Multi-Layer Optical Glass
Lens Coating Anti-Reflection Double Coated
Image Type Custom Glass GOBO / Metal GOBO
Color Temperature 3000K – 9000K
Color Rendering Index ≥85 Ra

Advanced optical technology ensures sharp logo edges, excellent brightness, and clear image projection even at large scales.

Electrical Specifications
Feature Specification
Input Voltage AC 100 – 240V
Frequency 50 / 60 Hz
Power Consumption 600W
LED Type Industrial High-Efficiency LED (CREE / OSRAM Type)
LED Lifetime Up to 50,000 Hours

The high-efficiency LED system ensures stable performance, energy efficiency, and reduced maintenance requirements.

Physical Specifications
Feature Specification
Housing Material Heavy-Duty Aluminum Alloy
Installation Wall Mount / Ceiling Mount / Floor Mount

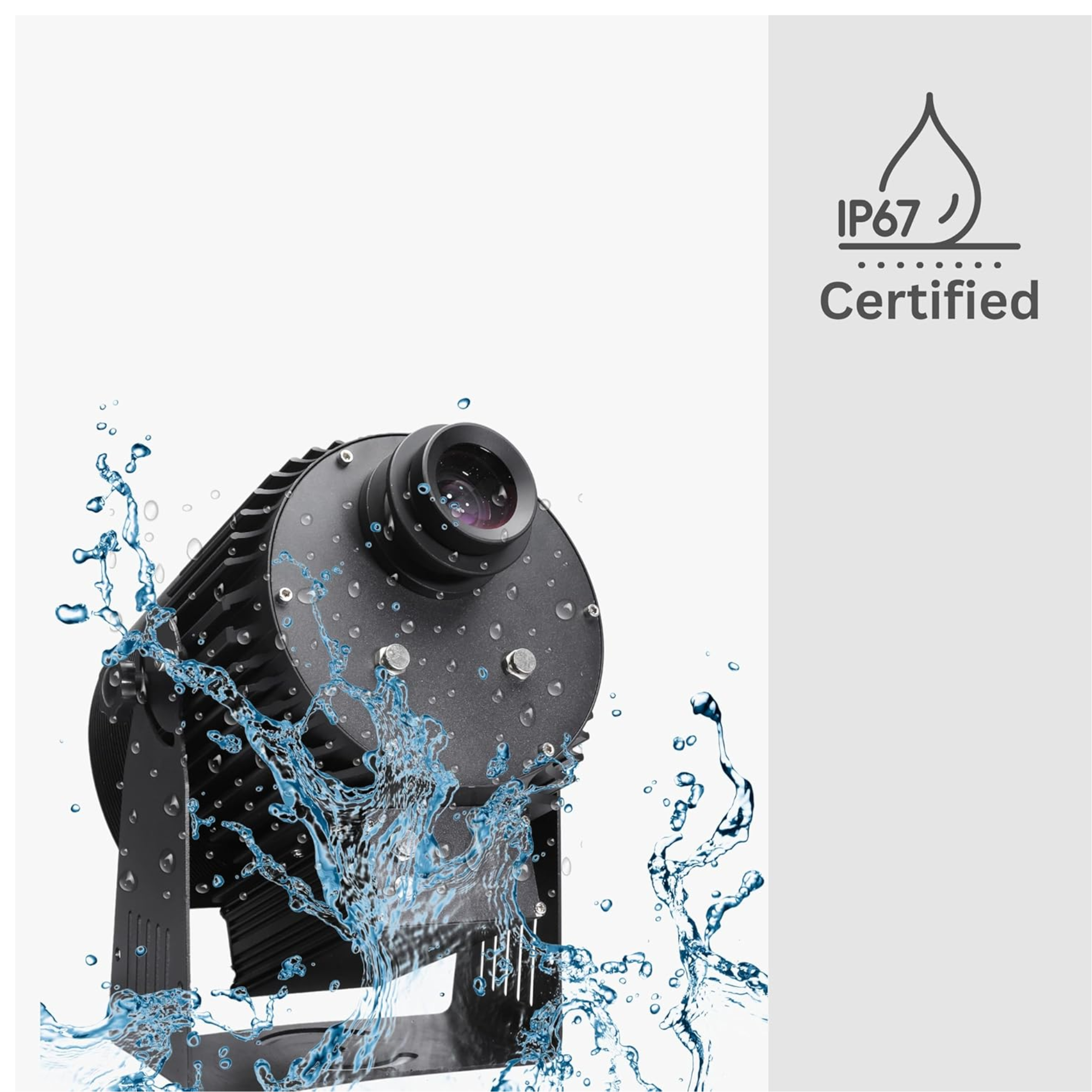

Protection Rating IP65 / IP67 Waterproof
Cooling System Industrial Heat Sink + Dual Fan Cooling
Working Temperature –30°C to 60°C
Gobo Capacity 1 – 4 Custom GOBO Slides

The rugged aluminum housing provides excellent heat dissipation and durability for outdoor environments.

Product Dimensions (Approx.)
Feature Specification
Length 600 – 650 mm
Width 380 – 420 mm
Height 320 – 360 mm
Net Weight Approx. 18 – 25 Kg

(Dimensions may vary depending on lens configuration.)

Key Features

✔ Ultra-bright 600W LED projection system
✔ Long-distance projection up to 150 meters
✔ HD optical lens for sharp logo projection
✔ Custom logo glass GOBO support
✔ Static or rotating projection option
✔ IP65 / IP67 waterproof outdoor design
✔ Industrial-grade cooling system
✔ Long-life LED 50,000 hours lifespan

Applications

Large Building Facade Projection

Stadium & Outdoor Event Branding

City Landmark Projection

Shopping Mall Advertising

Hotel & Resort Entrance Branding

Exhibition & Trade Show Projection

Industrial Safety Sign Projection

Package Contents

1 × 600W Logo Projector

Mounting Bracket

Power Cable

User Manual

Custom Logo GOBO (Optional)
