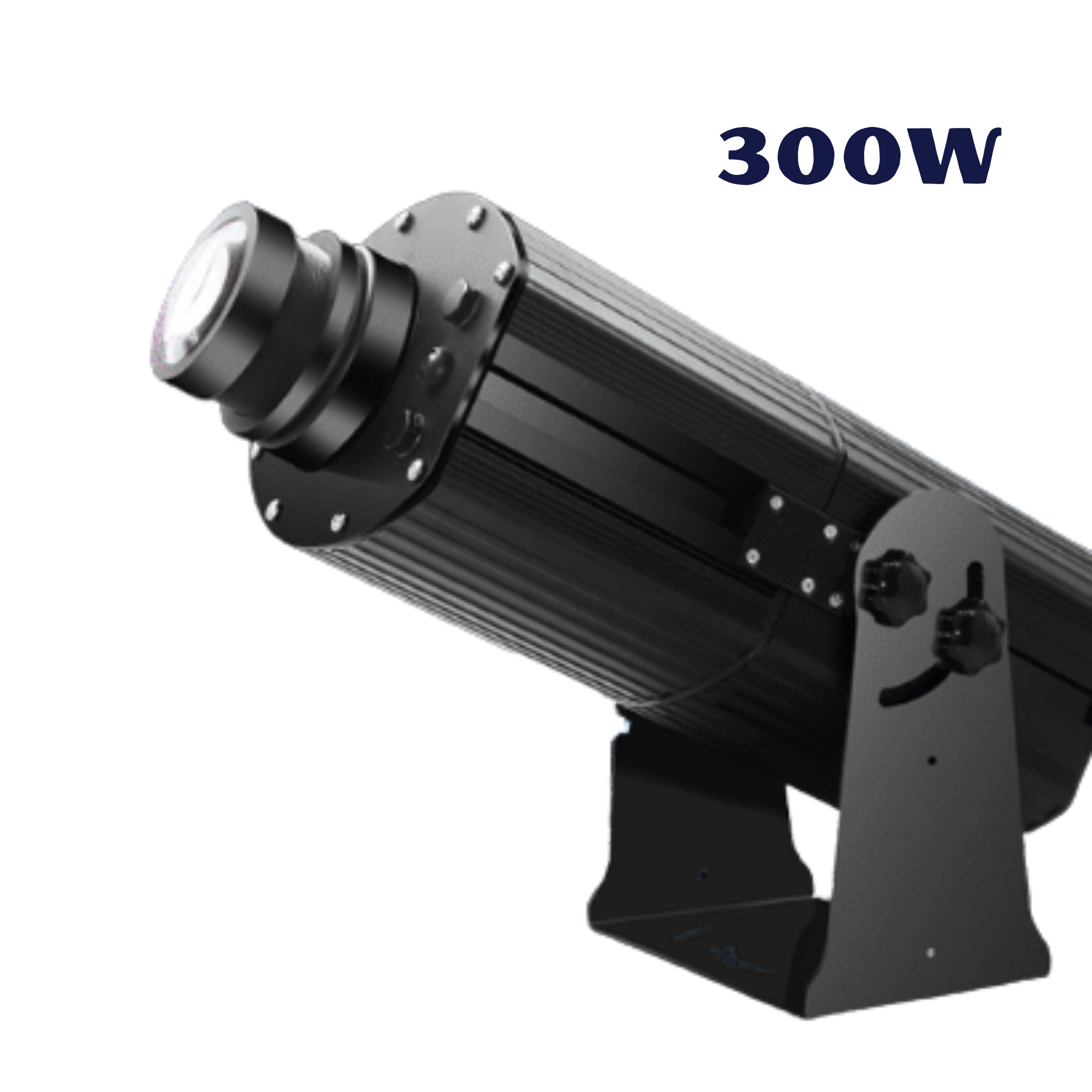

300W LED Logo Projector Ultra High-Power GOBO Advertising Projection System

Projection Specifications
Feature Specification
Product Type LED Logo Projector / GOBO Projector
LED Power 300 Watt High-Power LED
Brightness Approx. 24,000 – 30,000 Lumens
Projection Technology GOBO Optical Projection
Projection Distance 10 – 80 meters
Projection Ratio 1 : 0.33
Projection Angle Standard 20° Lens
Optional Lens 10° / 15° / 30° / 45°
Image Mode Static / Rotating Logo

The 300W LED module provides ultra-bright projection, making it suitable for large building projections and long-distance outdoor branding.

Optical System
Feature Specification
Lens Type High Definition Multi-Layer Optical Glass
Lens Coating Anti-Reflection Double Coated
Image Type Custom Glass GOBO / Metal GOBO
Color Temperature 3000K – 9000K
Color Rendering Index ≥85 Ra

Advanced optical technology ensures sharp logo edges, strong brightness, and excellent color accuracy.

Electrical Specifications
Feature Specification
Input Voltage AC 100 – 240V
Frequency 50 / 60 Hz
Power Consumption 300W
LED Type High Efficiency LED (OSRAM / CREE Type)
LED Lifetime Up to 50,000 Hours

The high-efficiency LED system ensures stable operation with lower maintenance costs.

Physical Specifications
Feature Specification
Housing Material Heavy-Duty Aluminum Alloy
Installation Wall Mount / Ceiling Mount / Floor Mount

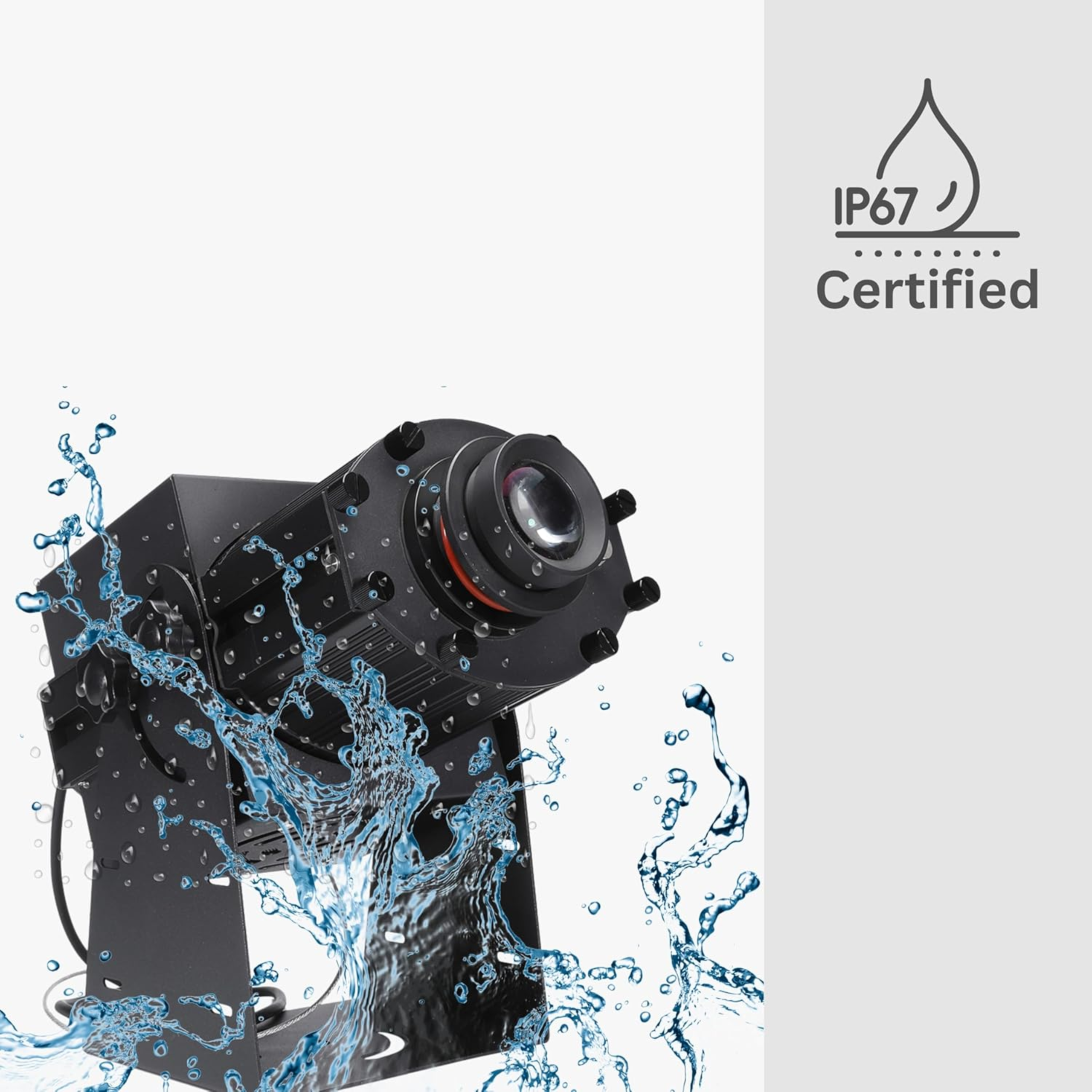

Protection Rating IP65 / IP67 Waterproof
Cooling System Advanced Heat Sink + Dual Fan Cooling
Working Temperature –30°C to 60°C
Gobo Capacity 1 – 4 Custom GOBO Slides

The rugged aluminum housing ensures excellent heat dissipation and long-term durability in outdoor environments.

Product Dimensions (Approx.)
Feature Specification
Length 480 – 520 mm
Width 300 – 340 mm
Height 260 – 300 mm
Net Weight Approx. 10 – 14 Kg

(Dimensions may vary depending on lens configuration.)

Key Features

✔ Ultra-bright 300W LED projection system
✔ Long-distance projection up to 80 meters
✔ HD optical lens for sharp logo projection
✔ Custom logo glass GOBO support
✔ Static or rotating projection option
✔ IP65 / IP67 waterproof outdoor design
✔ Long-life LED 50,000 hours lifespan

Applications

Large Building Facade Logo Projection

Stadium & Outdoor Advertising

Shopping Mall Branding

Hotel & Resort Entrance Projection

Event & Exhibition Branding

Factory Safety Sign Projection

Architectural Lighting Projection

Package Contents

1 × 300W Logo Projector

Mounting Bracket

Power Cable

User Manual

Custom Logo GOBO (Optional)
