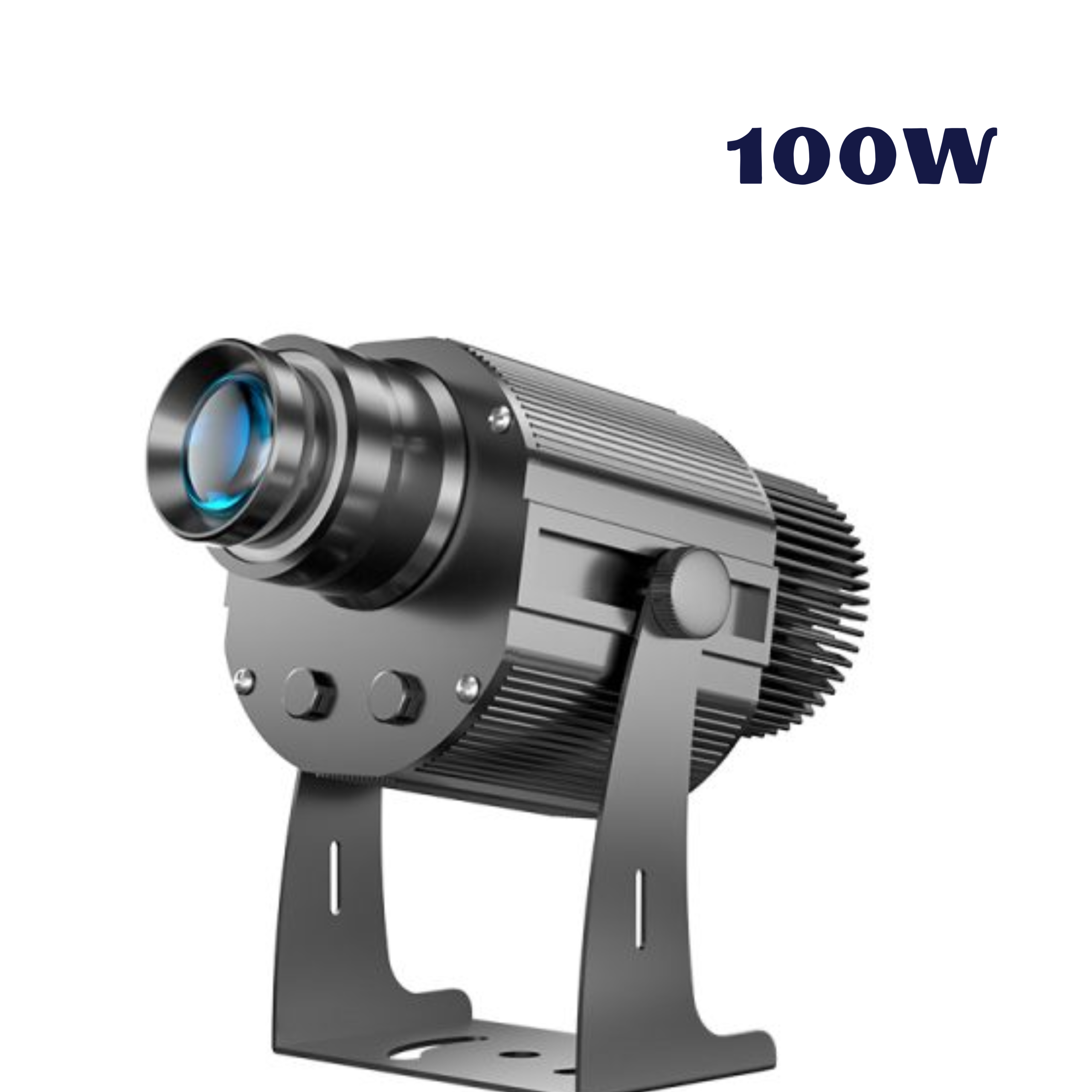

100W LED Logo Projector Ultra-High Brightness GOBO Advertising Projector

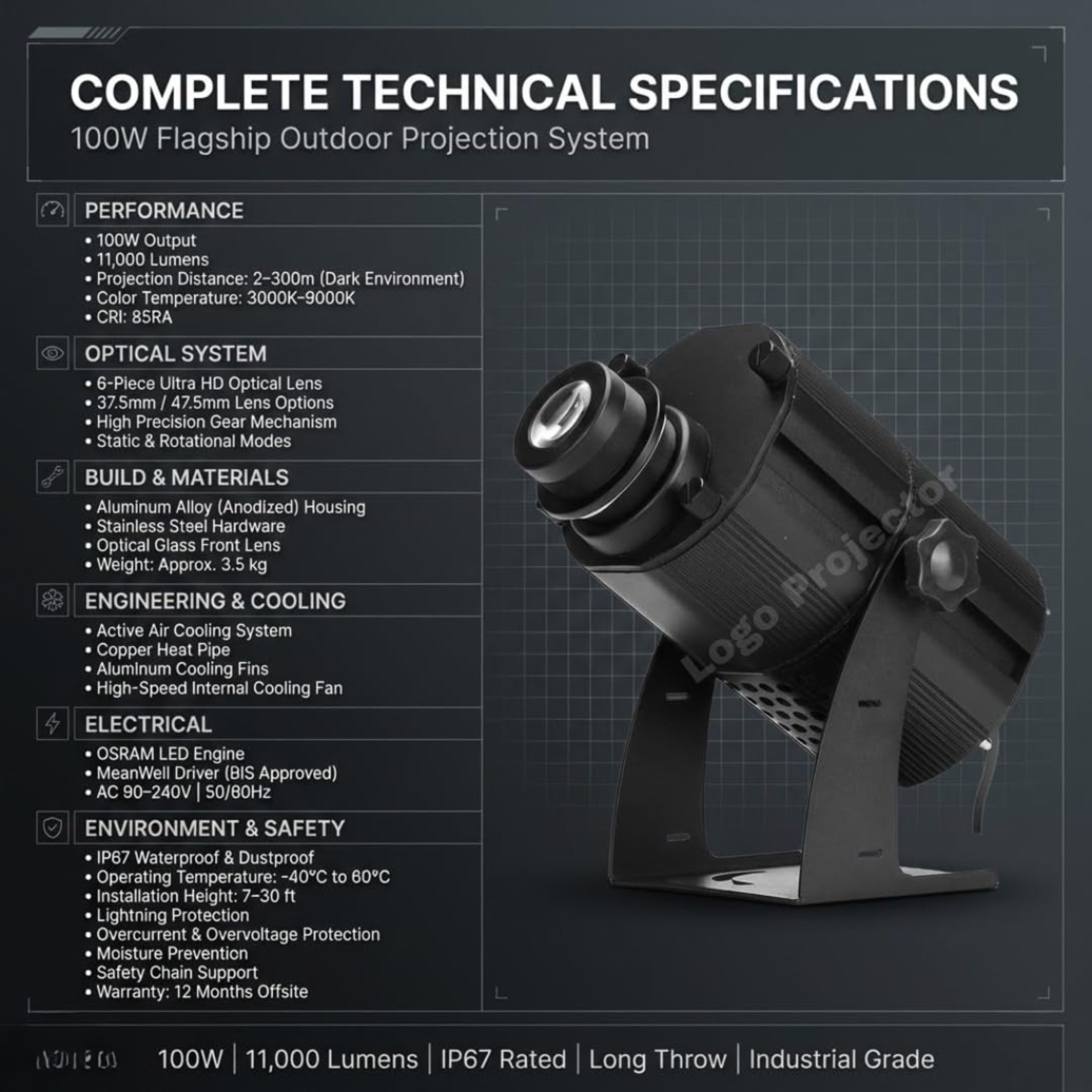

Projection Specifications
Feature Specification
Product Type LED Logo Projector / GOBO Projector
LED Power 100 Watt High Power LED
Brightness Approx. 9000 – 11000 Lumens
Projection Technology GOBO Optical Projection
Projection Distance 3 – 30 meters
Projection Ratio 1 : 0.33
Projection Angle 20° Standard Lens
Image Mode Static / Rotating Logo

High-power 100W logo projectors are designed for long-distance projection up to about 15–30 m depending on lighting conditions.

Optical System
Feature Specification
Lens Type HD Multi-Layer Optical Glass Lens
Lens Coating Anti-Reflection Double Coated
Image Type Custom Glass GOBO / Metal GOBO
Color Temperature 3000K – 9000K
Color Rendering Index ≥85 Ra

High-precision optical lenses ensure crystal-clear logo edges and strong contrast for professional advertising projection.

Electrical Specifications
Feature Specification
Input Voltage AC 100 – 240V
Frequency 50 / 60 Hz
Power Consumption 100W
LED Type High-Efficiency LED (SANAN / OSRAM type)
LED Lifetime Up to 50,000 Hours

Modern LED GOBO projectors typically operate for around 50,000 hours, providing long-term reliability and low maintenance costs.

Physical Specifications
Feature Specification
Housing Material Heavy-Duty Aluminum Alloy
Installation Wall / Ceiling / Floor Mount
Protection Rating IP65 / IP67 Waterproof

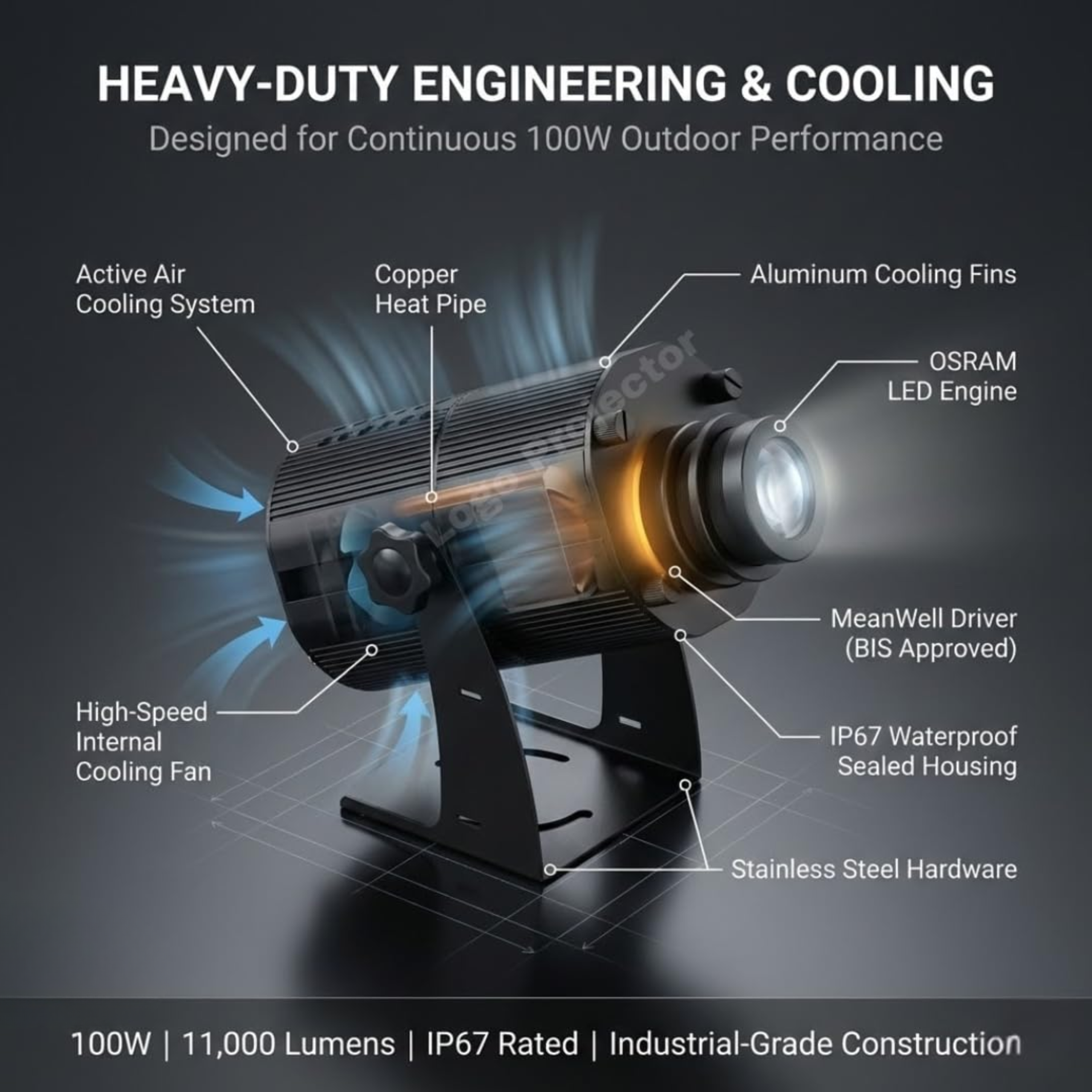

Cooling System Aluminum Heat Dissipation + Fan
Working Temperature –30°C to 60°C
Gobo Quantity 1–4 Custom GOBO Slides

Durable aluminum construction allows the projector to operate in outdoor environments including rain, dust, and extreme temperatures.

Product Dimensions (Approx.)
Feature Specification
Length 340 – 360 mm
Width 200 – 220 mm
Height 180 – 200 mm
Net Weight Approx. 3.5 – 6 Kg

(Dimensions vary depending on model and lens configuration.)

Key Features

✔ Ultra-bright 100W LED projection system
✔ HD optical lens for sharp logo projection
✔ Custom logo glass GOBO support
✔ Static or rotating projection option
✔ IP65 / IP67 waterproof outdoor design
✔ Manual focus adjustment for clear image
✔ Long-life LED 50,000 hours lifespan

Applications

Retail Store Branding

Shopping Mall Advertising

Hotel Entrance Logo Projection

Building Wall Projection

Event & Wedding Branding

Factory Safety Sign Projection

Exhibition & Trade Shows

Package Contents

1 × 100W Logo Projector

Mounting Bracket

Power Cable

User Manual

Custom Logo GOBO (Optional)
